DNS Monitor Configuration

Configure your DNS monitor to verify record resolution.

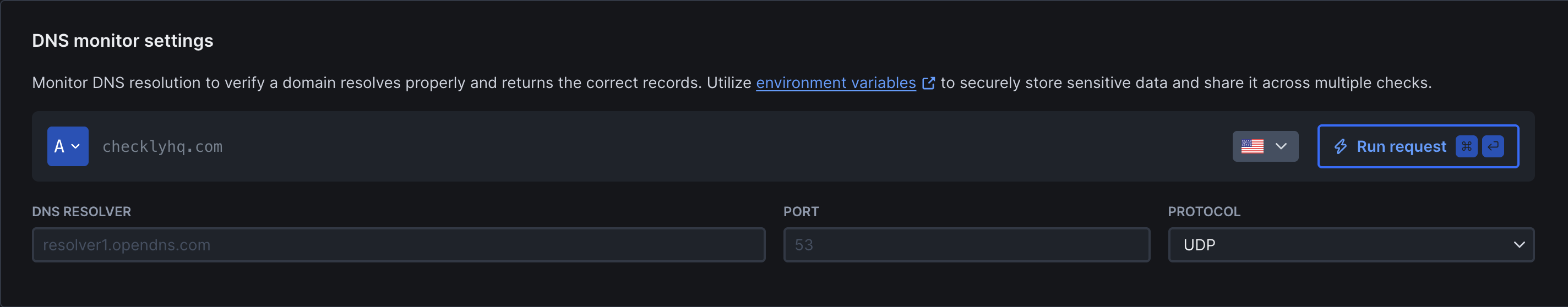

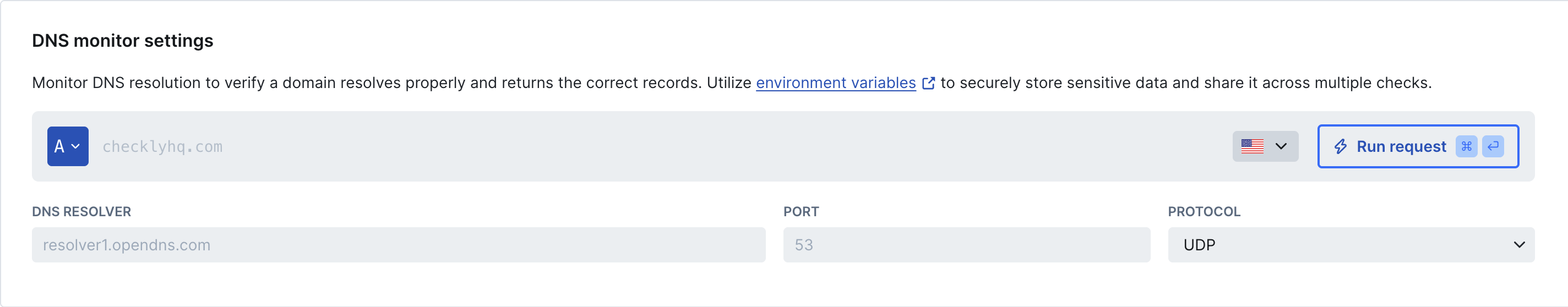

Basic Setup

Specify the domain and record type you want to check:

• Domain: The domain you want to monitor (e.g. checklyhq.com)
• Record type: The DNS record to query. See supported record types for the full list.
• DNS server: Queries use 8.8.8.8 (Google DNS) by default with automatic failover to 1.1.1.1 (Cloudflare) and an internal AWS resolver on errors. You can specify a custom nameserver and port (e.g., 1.1.1.1:53 or dns.google:53) to test resolver-specific behavior
• Protocol: You can pin DNS queries to UDP-only or TCP-only.

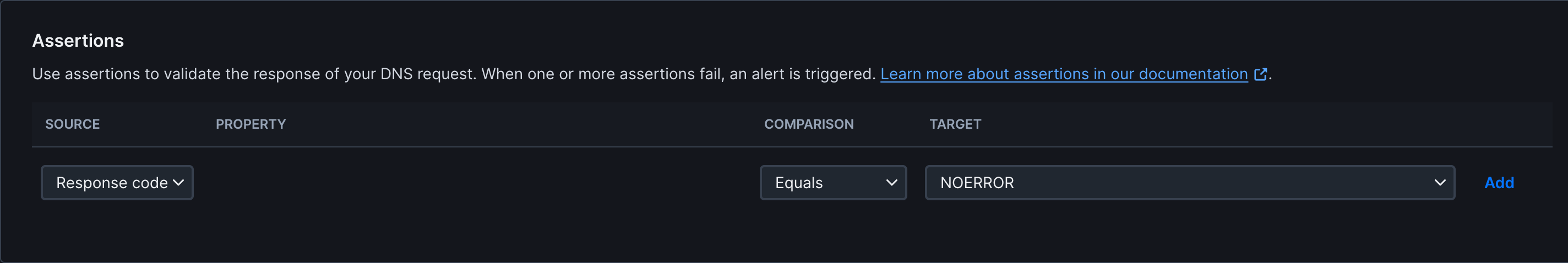

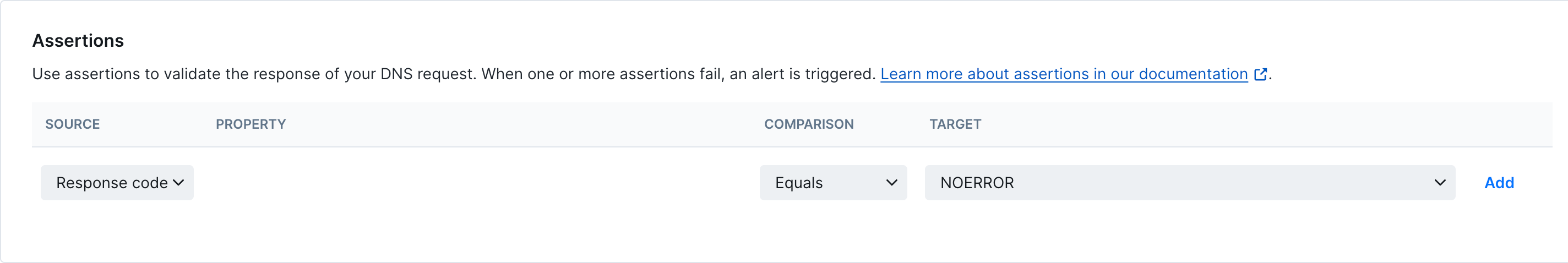

Assertions

Assertions let you define what the expected result of a DNS query should be.

The raw and JSON responses are shown on the results page of a DNS monitor run and can be used as a reference when defining assertions.

• Response time: The lookup time in milliseconds. Use this to set thresholds for failed lookups

• Return code: By default, DNS monitors pass when the return code is NOERROR and fail on error codes (FORMERR, SERVFAIL, NXDOMAIN, etc.). You can override this behavior by defining a custom return code assertion

• Text response: The raw DNS response as plain text. Use this to check for specific strings in the response

• JSON response: The DNS response parsed as JSON. This allows you to target specific fields using JSON path assertions. The response structure varies by record type. See JSON response schemas below for all supported record types.

With JSON path assertions, you can:

• $.Answer.length → verify the number of records returned
• $.Answer[0].TTL → validate TTL values are within expected ranges
• $.Answer[0].data → check specific IP addresses or record values
• $.Status → verify the DNS response status code

Learn more about JSON path assertions: JSON responses with JSON path.

JSON Response Schemas

The DNS response is parsed into a structured JSON format. All responses share a common structure:

{
  "Answer": [
    // Array of answer records
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "A"
    }
  ],
  "Status": "NOERROR",
  "TC": false,
  "RD": true,
  "RA": true,
  "AD": false,
  "CD": false
}

Key fields:

• Answer - Array of DNS records returned
• Question - The DNS query that was made
• Status - Response status (NOERROR, NXDOMAIN, SERVFAIL, etc.)
• TC - Truncated flag
• RD - Recursion desired flag
• RA - Recursion available flag
• AD - Authenticated data flag
• CD - Checking disabled flag

A Record (IPv4)

{
  "Answer": [
    {
      "name": "checklyhq.com.",
      "type": "A",
      "TTL": 27,
      "data": "18.66.102.85"
    },
    {
      "name": "checklyhq.com.",
      "type": "A",
      "TTL": 27,
      "data": "18.66.102.10"
    }
  ],
  "Question": [
    {
      "name": "checklyhq.com.",
      "type": "A"
    }
  ],
  "Status": "NOERROR",
  "TC": false,
  "RD": true,
  "RA": true,
  "AD": false,
  "CD": false
}

Common assertions:

• $.Answer[0].data - Check specific IP address
• $.Answer.length - Verify number of A records
• $.Answer[0].TTL - Validate TTL value

AAAA Record (IPv6)

{
  "Answer": [
    {
      "name": "example.com.",
      "type": "AAAA",
      "TTL": 300,
      "data": "2606:2800:220:1:248:1893:25c8:1946"
    }
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "AAAA"
    }
  ],
  "Status": "NOERROR"
}

Common assertions:

• $.Answer[0].data - Check IPv6 address
• $.Answer[0].TTL - Validate TTL value

CNAME Record

{
  "Answer": [
    {
      "name": "www.example.com.",
      "type": "CNAME",
      "TTL": 300,
      "data": "example.com."
    }
  ],
  "Question": [
    {
      "name": "www.example.com.",
      "type": "CNAME"
    }
  ],
  "Status": "NOERROR"
}

Common assertions:

• $.Answer[0].data - Verify canonical name target

MX Record

{
  "Answer": [
    {
      "name": "example.com.",
      "type": "MX",
      "TTL": 3600,
      "data": "10 mail.example.com."
    },
    {
      "name": "example.com.",
      "type": "MX",
      "TTL": 3600,
      "data": "20 mail2.example.com."
    }
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "MX"
    }
  ],
  "Status": "NOERROR"
}

Common assertions:

• $.Answer[0].data - Check MX priority and mail server (format: “priority hostname”)
• $.Answer.length - Verify number of mail servers

TXT Record

{
  "Answer": [
    {
      "name": "example.com.",
      "type": "TXT",
      "TTL": 300,
      "data": "v=spf1 include:_spf.example.com ~all"
    }
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "TXT"
    }
  ],
  "Status": "NOERROR"
}

Common assertions:

• $.Answer[0].data - Verify SPF, DKIM, or other TXT records
• Text response contains v=spf1 - Check for SPF record

NS Record

{
  "Answer": [
    {
      "name": "example.com.",
      "type": "NS",
      "TTL": 86400,
      "data": "ns1.example.com."
    },
    {
      "name": "example.com.",
      "type": "NS",
      "TTL": 86400,
      "data": "ns2.example.com."
    }
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "NS"
    }
  ],
  "Status": "NOERROR"
}

Common assertions:

• $.Answer.length - Verify number of nameservers
• $.Answer[0].data - Check specific nameserver

SOA Record

{
  "Answer": [
    {
      "name": "example.com.",
      "type": "SOA",
      "TTL": 3600,
      "data": "ns1.example.com. admin.example.com. 2024010100 7200 3600 1209600 3600"
    }
  ],
  "Question": [
    {
      "name": "example.com.",
      "type": "SOA"
    }
  ],
  "Status": "NOERROR"
}

SOA data format: primary-ns responsible-email serial refresh retry expire minimum

Common assertions:

• $.Answer[0].data - Verify SOA record (contains serial number and nameserver)
• Text response contains expected serial number

Record type support: DNS monitors currently support A, AAAA, CNAME, MX, NS, SOA, and TXT record types. Additional record types (SRV, CAA, PTR, etc.) may be added in future updates.

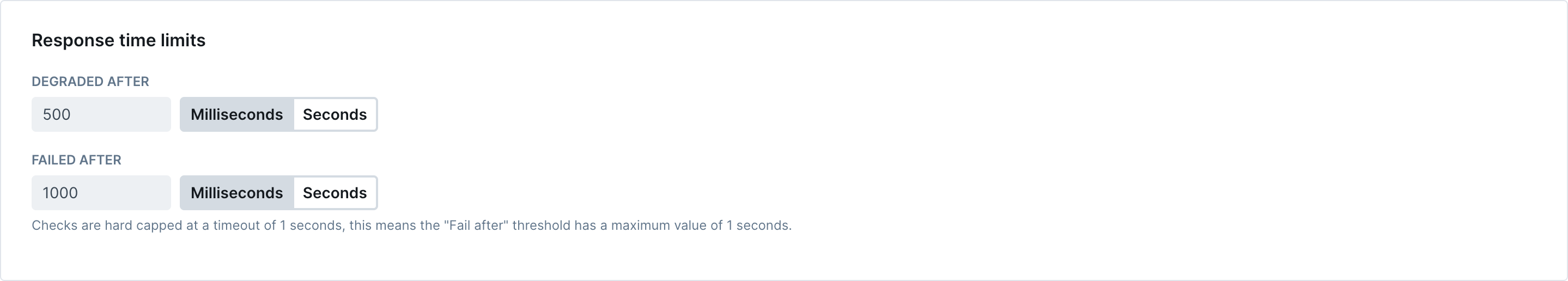

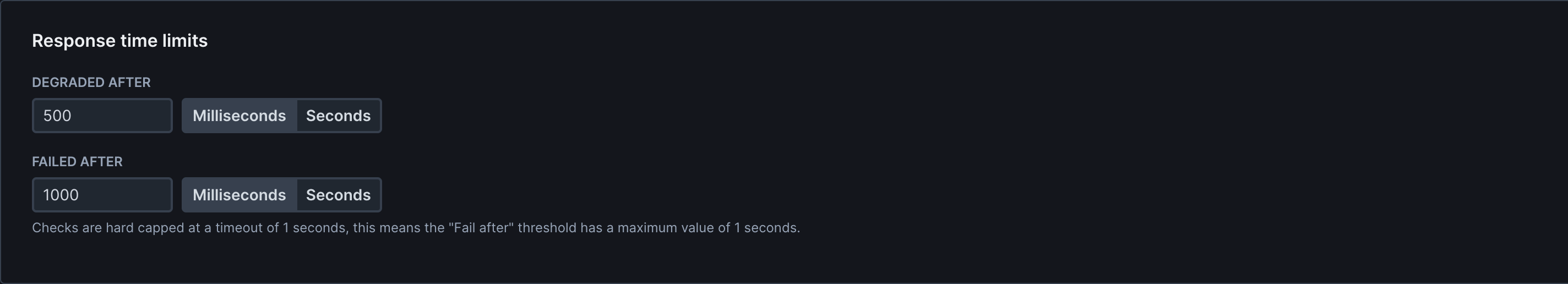

Response Time Limits

Define performance thresholds for degraded or failed states:

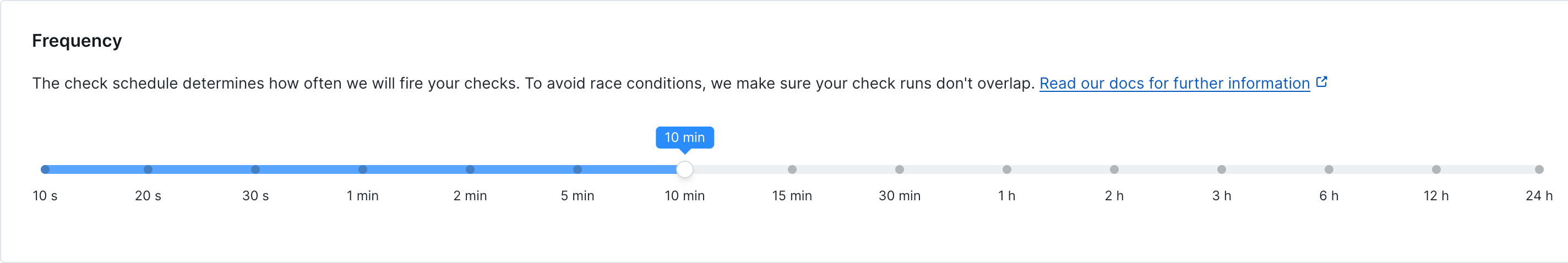

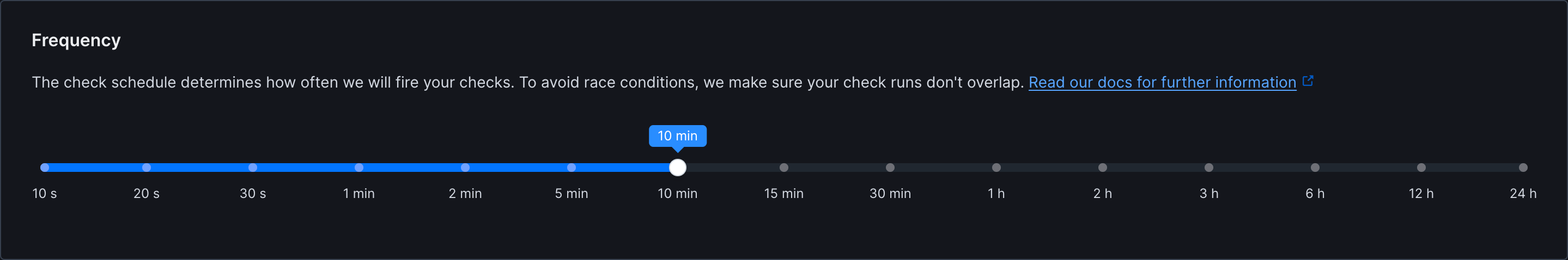

Frequency

Set how often the monitor runs (every 10 seconds to 24 hours):

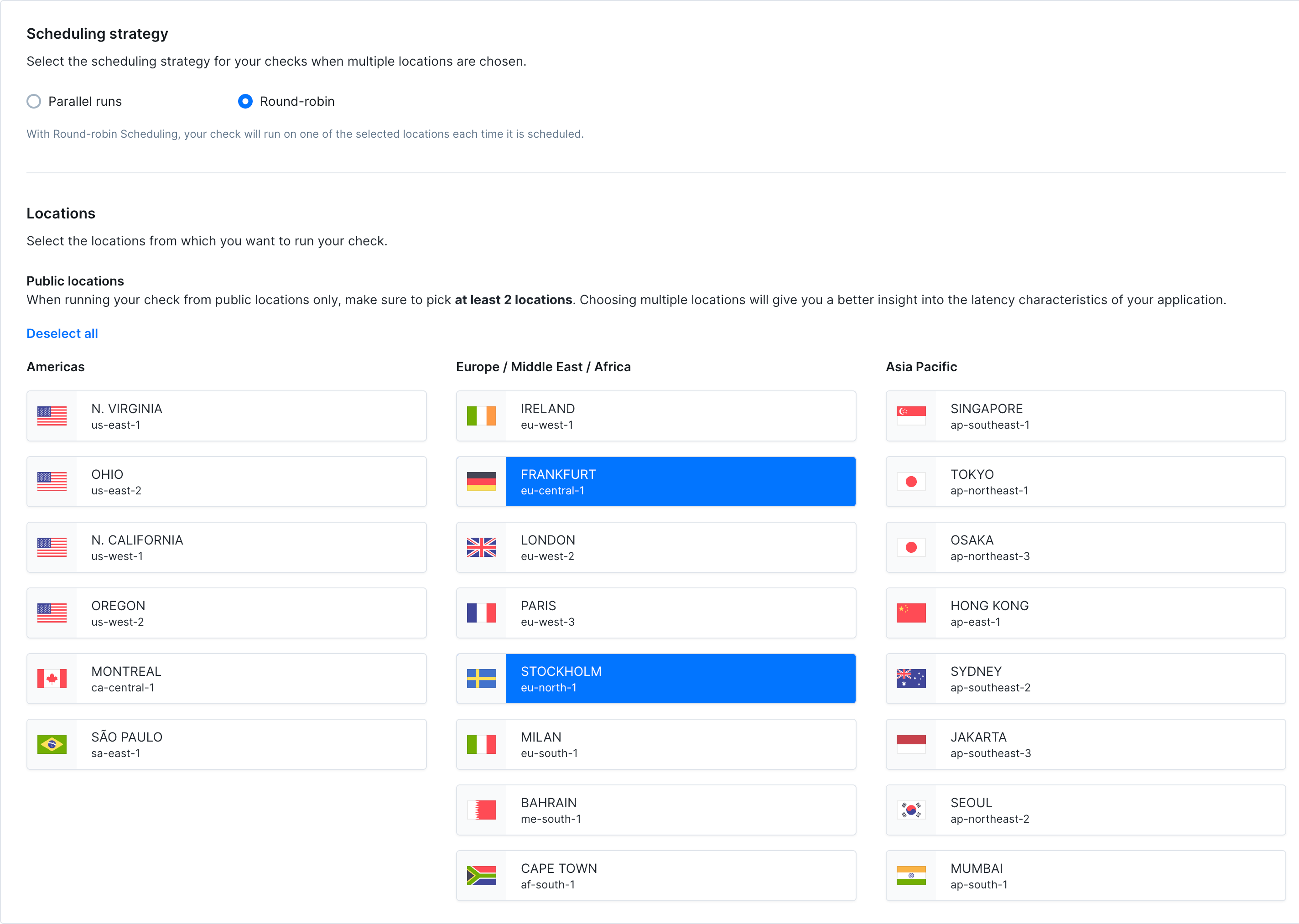

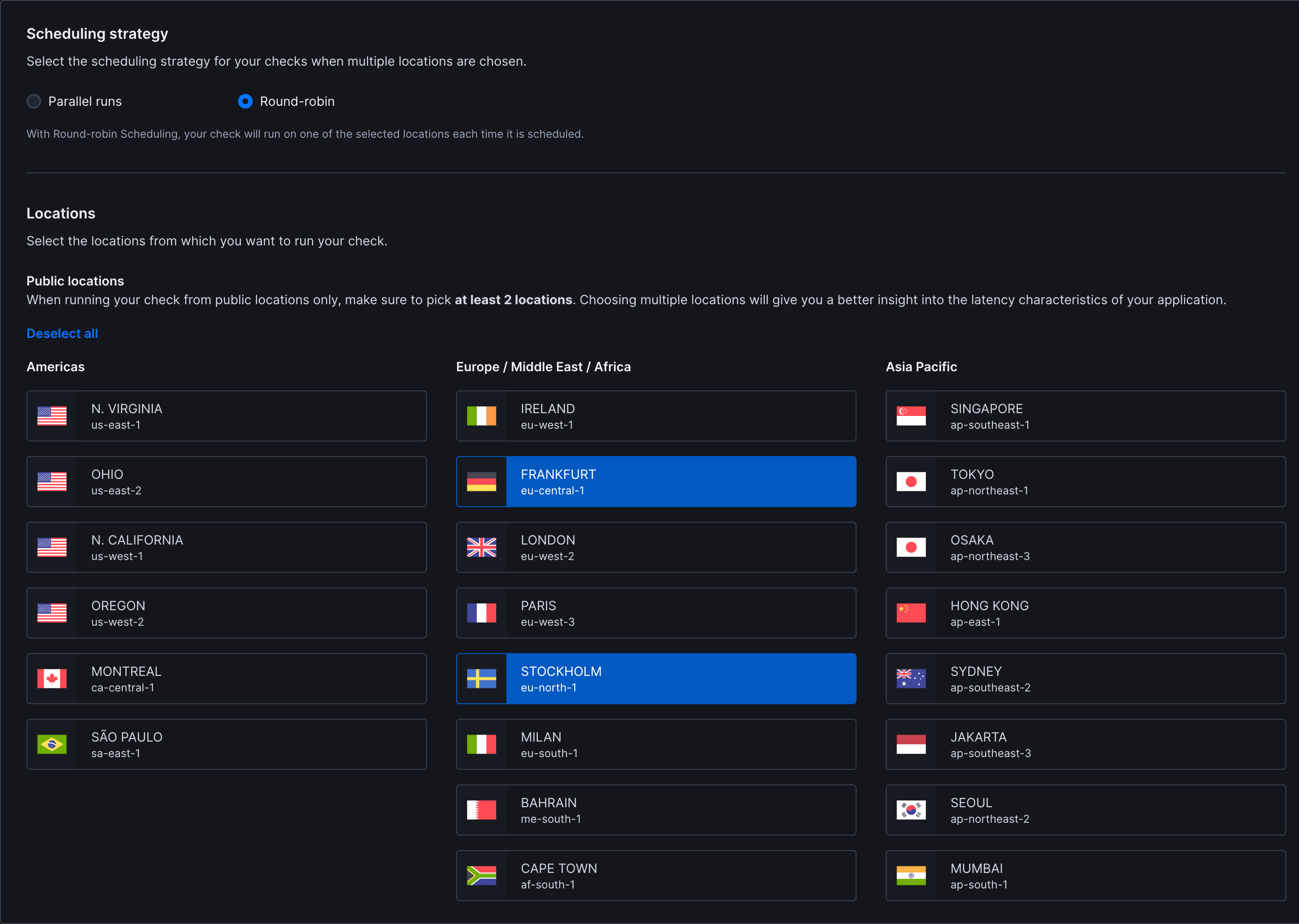

Scheduling & Locations

• Strategy: Choose between round-robin or parallel execution. Learn more about scheduling strategies
• Locations: Select one or more public locations to run the monitor from.
• Private locations: DNS monitors do not currently support private locations.

Additional Settings

• Name: Give your monitor a clear name to identify it in dashboards and alerts
• Tags: Use tags to organize monitors across dashboards and maintenance windows
• Retries: Define how failed runs should be retried. See retry strategies
• Alerting: Configure your alert settings, alert channels, or set up webhooks for custom integrations

Common Use Cases

Monitor CDN failover with multiple A records

Scenario: Your CDN provides multiple IP addresses for redundancy. You need to ensure all IPs are reachable.

Configuration:

• Domain: cdn.example.com
• Record type: A
• Assertions:
  • $.Answer.length equals 4 (verify all IPs present)
  • $.Answer[0].TTL is less than 300 (ensure low TTL for quick failover)
  • $.Answer[0].data equals expected IP address

Verify email security records (SPF, DKIM, DMARC)

Scenario: Monitor SPF, DKIM, and DMARC records to prevent email spoofing.

Configuration:

• Domain: example.com
• Record type: TXT
• Assertions:
  • Text response contains v=spf1
  • $.Answer[0].data contains v=spf1

For DMARC:

• Domain: _dmarc.example.com
• Record type: TXT
• Assertions:
  • Text response contains v=DMARC1
  • $.Answer[0].data contains p=reject or p=quarantine

Monitor mail server configuration

Scenario: Ensure primary and backup mail servers are correctly configured.

Configuration:

• Domain: example.com
• Record type: MX
• Assertions:
  • $.Answer.length is greater than 1 (at least 2 MX records)
  • $.Answer[0].data contains 10 mail.example.com. (priority 10 + hostname)
  • Text response contains mail.example.com

Test DNS propagation after zone transfer

Scenario: After updating nameservers, verify all nameservers return consistent results.

Configuration:

• Domain: example.com
• Record type: NS
• Create separate monitors for each nameserver:
  • Monitor 1: DNS server ns1.example.com:53
  • Monitor 2: DNS server ns2.example.com:53
• Assertions:
  • $.Answer.length equals expected count
  • $.Answer[0].data equals ns1.example.com. or ns2.example.com.
